Arrow · Applets and Applications

The Arrow::Applet class is the main workhorse of the Arrow framework; it, in concert with Arrow::Transaction, provides most of the functionality that application developers will be concerned with.

Applets make up the functionality of an application; each distinct group of tasks that a user can do is expressed as a separate class which inherits from Arrow::Applet. The base Applet class defines much of what is covered in the rest of this tutorial, so if you don’t like the templating system or the argument validation system built into the base applet class, you can easily define your own that uses something else instead without having to give up any of the other functionality.

For now, though, this tutorial will focus on the default functionality, with mention made of how to override or replace it where appropriate.

The Parts of an Applet

An Arrow applet is made up of a signature, one or more actions, and an optional delegator method.

The Signature

The signature is a Hash of metadata which describes the applet to the app framework, and includes information like name and author, and configures some of the logic and functionality provided by the Arrow::Applet class itself. An Applet’s signature is set by calling class methods in the definition to configure it.

   1  require 'arrow/applet'
   2
   3  class HelloWorldApplet < Arrow::Applet
   4      # Applet signature
   5      applet_name        "Hello World"
   6      applet_description "This is yet another implementation of Hello World"
   7      applet_maintainer  "ged@FaerieMUD.org"
   8      applet_version     "1.2.2"
   9
  10      default_action :greet
  11      template :greeting => 'templates/greeting.tmpl'
  12
  13      # Define some actions...
  14  end

Setting applet signature values

Signature Values

No element of the signature is mandatory: the base applet class will try to guess appropriate values for any missing elements. The values the base applet class understands are listed below along with what they do.

Actions

Actions provide the actual functionality of the applet. An action is just a specially-named method which corresponds to a part of the URI the client requests, and represents a step or phase of the applet’s execution.

Action Method Form

Each action method’s name must end with _action. For example, if you’re defining the ‘display’ action, you’d define a method called display_action:

   1  require 'arrow/applet'
   2
   3  class HelloWorldApplet < Arrow::Applet
   4
   5      ### Action: Display some content
   6      def display_action( txn, *args )
   7          # ...do something with the transaction 'txn'...
   8          return "Some content"
   9      end
  10
  11  end

Defining an action

Action methods are called with an Arrow::Transaction object and zero or more arguments that can be passed REST-style in the URI. Only the transaction argument is mandatory; defining an action method without parameters will result in an error.

If you like, you can also distinguish actions from other methods in the applet by using the def_action declaration to define an action:

   1  require 'arrow/applet'
   2
   3  class HelloWorldApplet < Arrow::Applet
   4
   5      ### Action: Display some content
   6      def_action :display do |txn, *args|
   7          # ...do something with the transaction 'txn'...
   8          return "Some content"
   9      end
  10
  11  end

Defining the same action with `def_action’

Action Execution

When an action method is called, it should do the necessary processing to build the response data and return it to its caller. This return value will then be converted to a String (via #to_s) and sent to the client after doing the necessary header senting and Apache housekeeping. Returning a non-true value causes a DECLINED status to be sent back to Apache. This can be used to pass control to a further handler if the action determines it cannot handle the request.

For return behaviors outside of these (for example, altered headers or a different status), it is necessary to access the Apache::Request object directly (through txn.request in the examples above). See the mod ruby site for more information on what to do with this.

Delegator Method

As mentioned before, applets can also be chained together to build more complex functionality. Apps which are intended to be chained through should define a #delegate method. This delegation method is called by the broker when the applet is being chained through, and is responsible for calling yield if and when it wishes to pass control to the next applet in the chain, passing any desired additional arguments. Delegation methods are invoked with the same arguments as action methods, including any added by previous applets in the chain.

A simple applet – Hello

We’ll start with a dead-simple applet that doesn’t really do much of anything useful, snippets of which you’ve already seen above. In keeping with tradition, of course, this applet will be yet another implementation of ‘Hello World’:

   1  #
   2  # A "hello world" Arrow applet
   3  #
   4
   5  require 'arrow/applet'
   6
   7  # Define the applet class; inherit from the base applet class.
   8  class HelloWorldApplet < Arrow::Applet
   9
  10    # Applet signature
  11    applet_name "Hello World"
  12    applet_description "This is yet another implementation of Hello World"
  13    applet_maintainer "ged@FaerieMUD.org"
  14
  15    default_action :greet
  16
  17    # Define the 'greet' (default) action
  18    def greet_action( txn )
  19      return <<-EOF
  20      <html>
  21        <head><title>Hello</title></head>
  22        <body><p>Hello, world.</p></body>
  23      </html>
  24      EOF
  25    end
  26
  27  end

A Hello World applet

The applet’s class is HelloWorldApplet, which means to install it into the server’s URI-space you’d add a line like the following to the layout hash of the applets section of the arrow config file:

   1  applets:
   2    layout:
   3      "/hello": Hello

Installing the Hello World applet.

After the config has been loaded, requests for /<arrow-root>/hello/greet (and simply /<arrow-root>/hello, because greet is the default action) will return something that looks like:

Passing REST-style Arguments

Now let’s add a bit of personalization to the applet. Perhaps it should be able to generate customizable messages in addition to greeting the entire world. To do this, we can make the greet action take an additional argument specified in the URL:

   1  # Define the 'greet' (default) action
   2    def greet_action( txn, name=nil )
   3      name ||= "world"
   4
   5      return \
   6          %{<html>} +
   7          %{  <head><title>Hello</title></head>} +
   8          %{  <body><p>Hello, #{name.capitalize}.</p></body>} +
   9          %{</html>}
  10    end

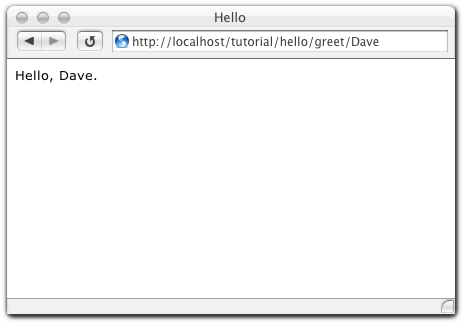

Calling the applet with a URL like /hello/greet/Dave will now cause it to greet only Dave instead:

Note that we’re required to call the action ‘greet’ explicitly to be able to pass in URL-style arguments.
